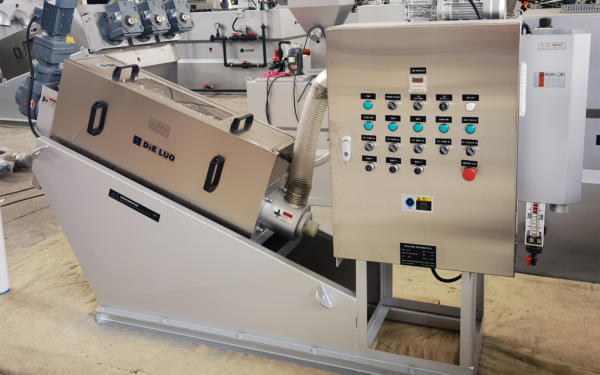

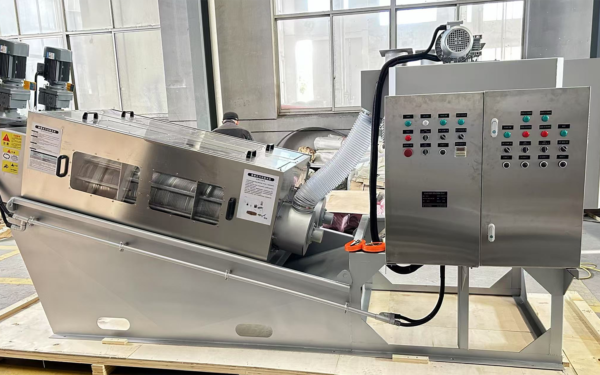

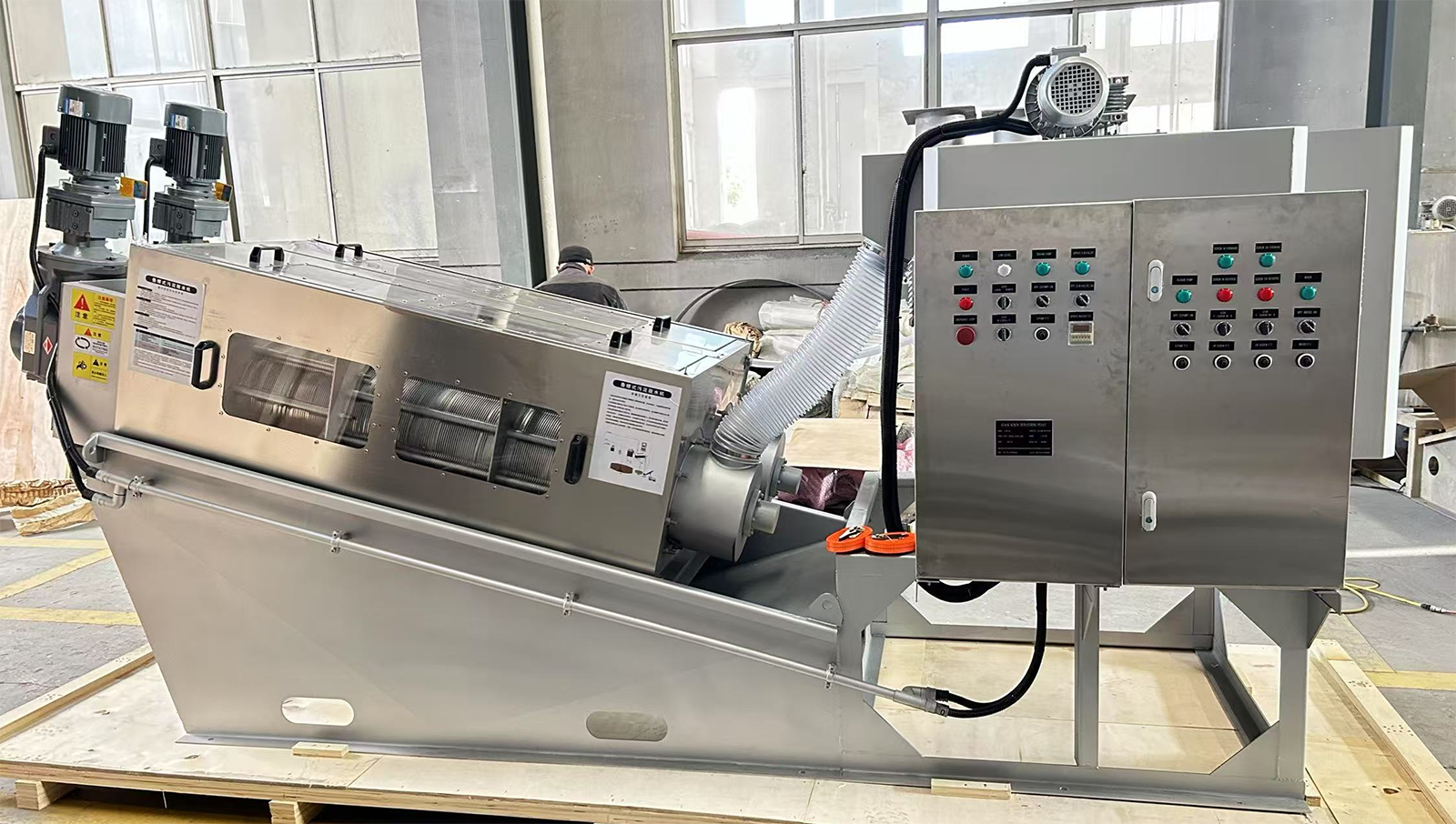

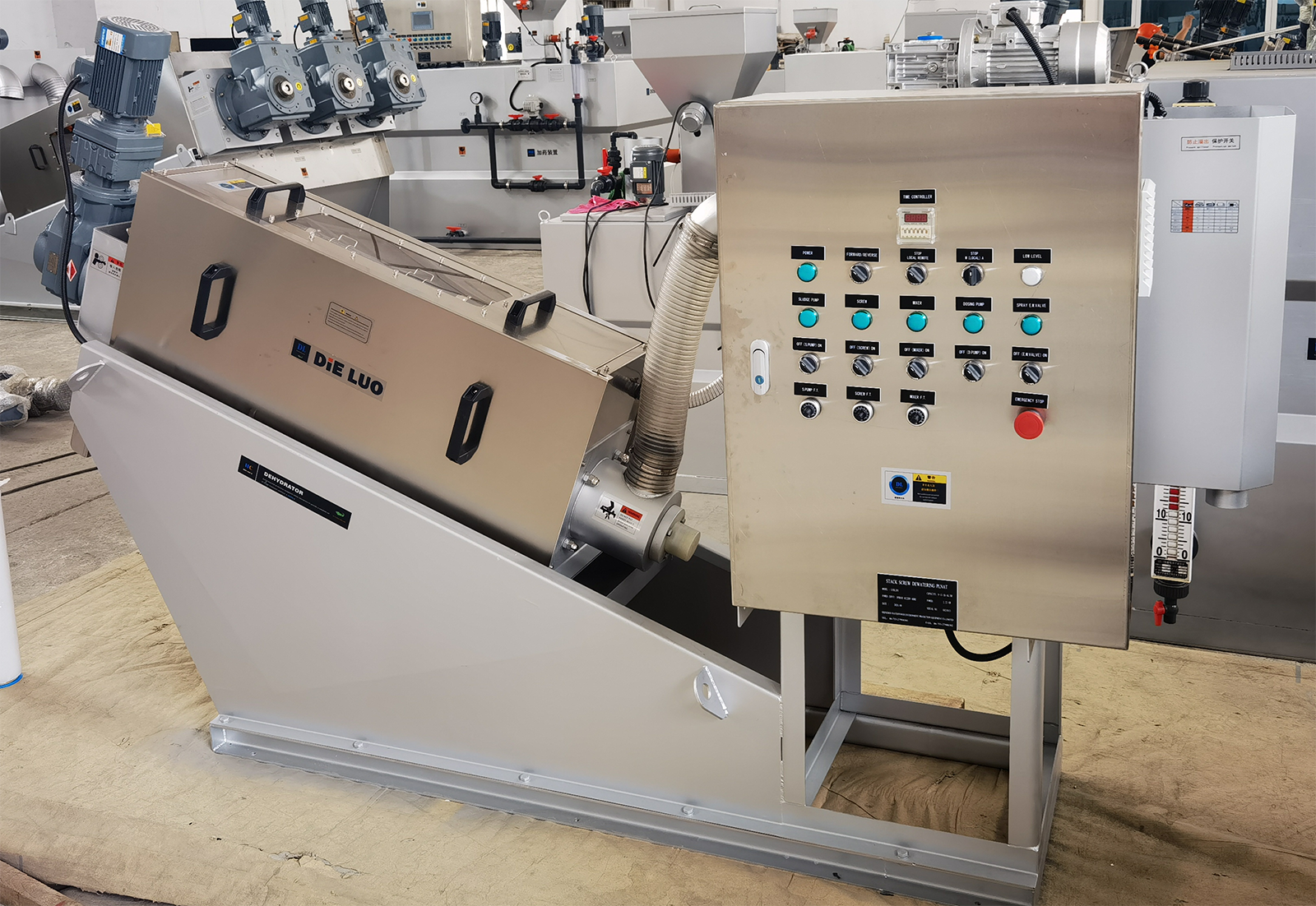

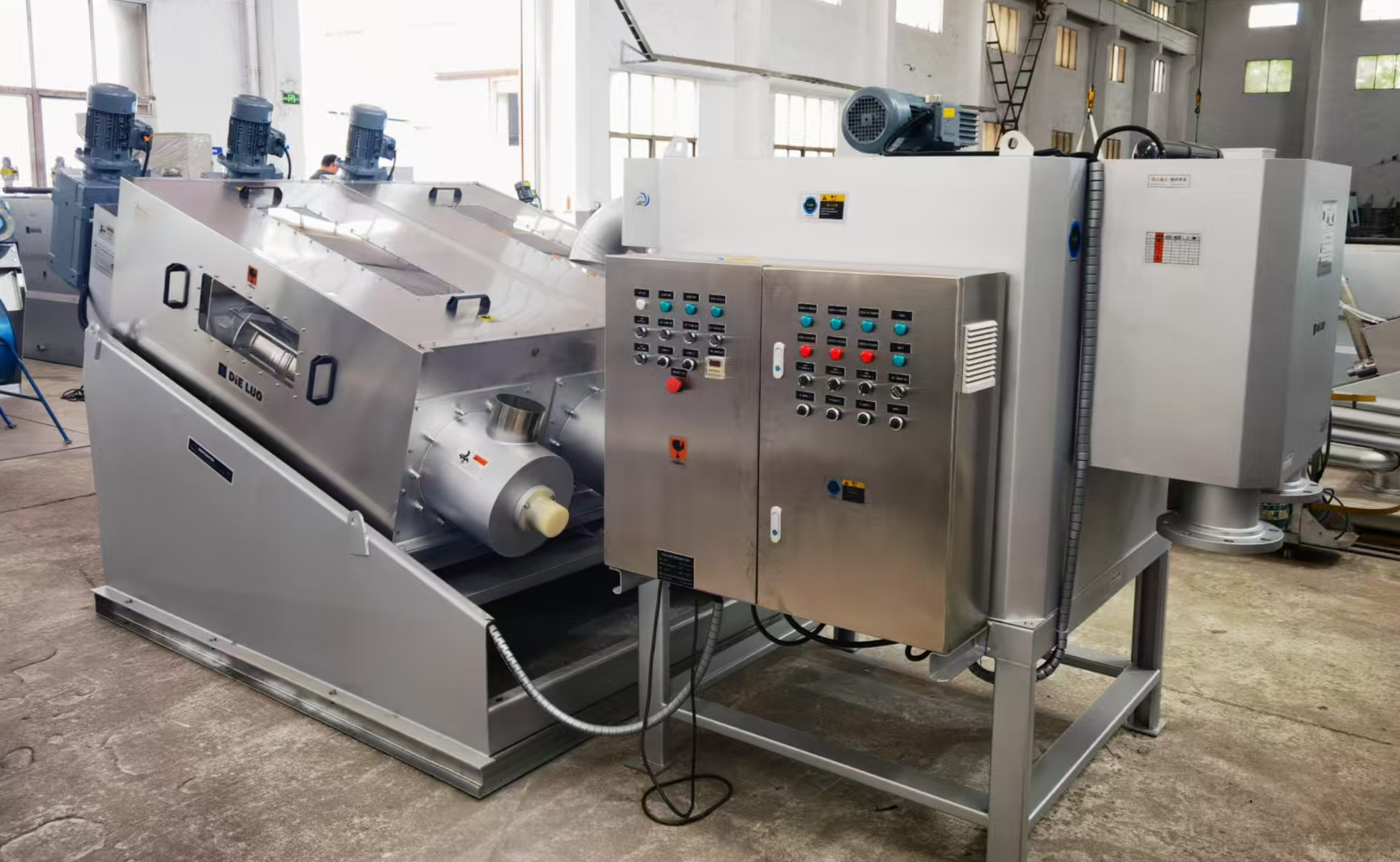

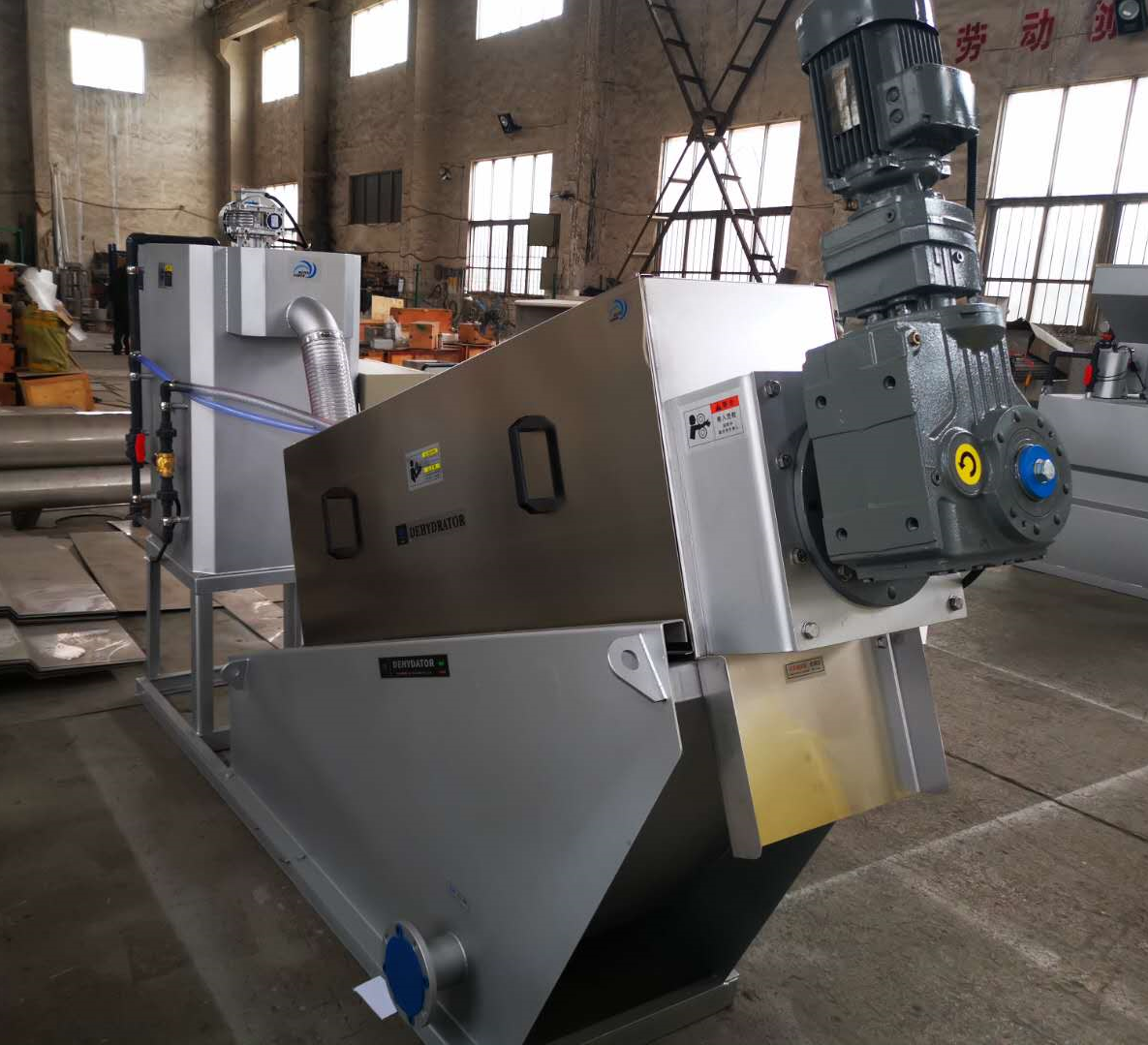

Plant structure

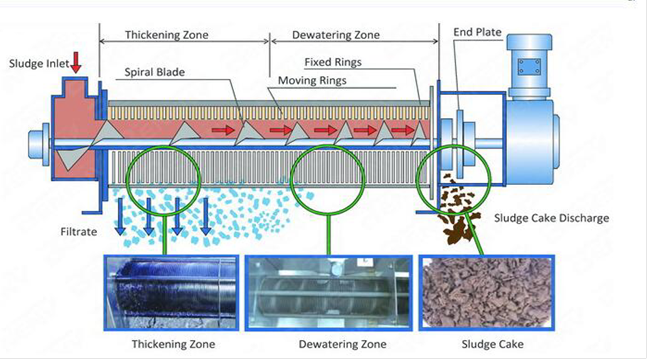

Dewatering principle

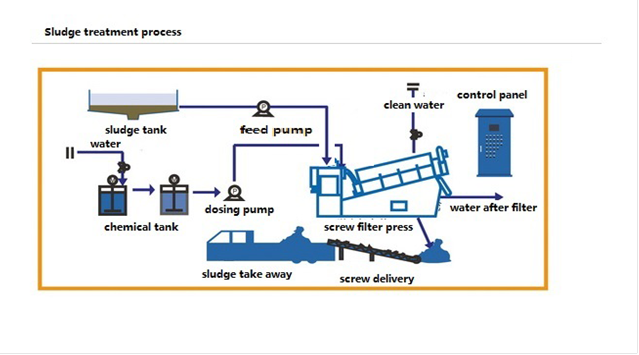

Operation process
Model list:
| Model | DS standard capacity | Slurry treatment capacity | ||||||
|---|---|---|---|---|---|---|---|---|
| Low consistency kg/h |
High consistency kg/h |
2000mg/m³ m³/h |
5000mg/m³ m³/h |
10000mg/m³ m³/h |
20000mg/m³ m³/h |
25000mg/m³ m³/h |
50000mg/m³ m³/h |
|
| LYDL101 | ~3 | ~5 | -1.5 | -0.6 | -0.5 | -0.25 | -0.2 | -0.1 |
| LYDL131 | ~6 | ~10 | -1.4 | -1.0 | -1.0 | -0.5 | -0.4 | -0.2 |
| LYDL132 | ~12 | ~20 | -7.0 | -2.0 | -1.0 | -0.8 | -0.6 | -0.4 |
| LYDL201 | ~9 | ~15 | -4.5 | -1.8 | -1.5 | -0.7 | -0.6 | -0.3 |
| LYDL202 | ~20 | ~30 | -10 | -4.0 | -3.0 | -1.5 | -1.2 | -0.6 |
| LYDL301 | ~40 | ~60 | -19 | -7.6 | -6.0 | -3.0 | -2.4 | -1.2 |
| LYDL302 | ~75 | ~120 | -37 | -15 | -12 | -6.0 | -4.8 | -2.4 |
| LYDL303 | ~115 | ~175 | -58 | -23 | -18 | -9.0 | -7.0 | -3.5 |
| LYDL402 | ~185 | ~310 | -92 | -37 | -30 | -15 | -12.5 | -6.0 |
| LYDL403 | ~285 | ~450 | -142 | -57 | -45 | -22 | -18.0 | -9.0 |
| LYDL404 | ~365 | ~610 | -182 | -73 | -61 | -30 | -24.0 | -12 |
Spc.size list:
| Model | Screw shaft spec. | the slide cake Outlet high(mm) | Length | Width | High | Net Weight(kg) | Operating weight(kg) |
|---|---|---|---|---|---|---|---|
| LYDL101 | ￠90×1 | 550 | 1900 | 650 | 1060 | 210 | 300 |
| LYDL131 | ￠110×1 | 570 | 2370 | 860 | 1130 | 230 | 320 |
| LYDL132 | ￠110×2 | 570 | 2370 | 950 | 1130 | 365 | 535 |
| LYDL201 | ￠160×1 | 700 | 2500 | 780 | 1270 | 375 | 520 |
| LYDL202 | ￠160×2 | 700 | 2500 | 935 | 1270 | 470 | 710 |
| LYDL203 | ￠160×3 | 700 | 2800 | 1380 | 1310 | 680 | 1020 |
| LYDL301 | ￠250×1 | 800 | 3500 | 900 | 2000 | 700 | 980 |
| LYDL302 | ￠250×2 | 800 | 3600 | 1180 | 2000 | 1260 | 1820 |
| LYDL303 | ￠250×3 | 800 | 3600 | 1640 | 2000 | 1820 | 2660 |
| LYDL402 | ￠350×2 | 850 | 4690 | 1600 | 2252 | 2610 | 3740 |
| LYDL403 | ￠350×3 | 850 | 5030 | 2050 | 2412 | 3785 | 6020 |
| LYDL404 | ￠350×4 | 850 | 5170 | 2600 | 2560 | 4960 | 8040 |
Running conduction:
| Model | Motor power (KW) | Water pressure for the cleaning | Water consumption for the cleaning (L/H) | Maintenance frequency | Consumable parts replacement cycle(year) | |||
|---|---|---|---|---|---|---|---|---|
| Screw shaft | Mixer | Total | Screw shaft | Moving ring | ||||
| LYDL101 | 0.18 | 0.37 | 0.55 | 1-2kg/cm2 | 24 | 10min/day | 5 | 3 |
| LYDL131 | 0.25 | 0.37 | 0.62 | 24 | 5 | 3 | ||
| LYDL132 | 0.5 | 0.37 | 0.87 | 48 | 5 | 3 | ||
| LYDL201 | 0.37 | 0.37 | 0.74 | 32 | 5 | 3 | ||
| LYDL202 | 0.75 | 0.55 | 1.3 | 62 | 5 | 3 | ||
| LYDL301 | 0.75 | 0.75 | 1.5 | 36 | 5 | 5 | ||
| LYDL302 | 1.5 | 0.75 | 2.25 | 72 | 5 | 5 | ||
| LYDL303 | 2.25 | 1.1 | 3.35 | 108 | 5 | 5 | ||
| LYDL402 | 2.2 | 1.1 | 3.3 | 120 | 5 | 5 | ||
| LYDL403 | 3.3 | 1.5 | 4.8 | 180 | 5 | 5 | ||
| LYDL404 | 4.4 | 1.5 | 5.9 | 240 | 5 | 5 | ||
Advantages and features
• Enclosed to minimize the odors and noise;
• Very low wash water consumption (1/8 compared with belt press);
• High cake solids;
• Minimal worker requirement;
• Easy to operate and maintain;
• Auto start-up,run and shutdown;
• Touch screen operation optional;
• Sludge flow and cake monitoring system;
• Apply to many fields ,such as dairy, palm oil etc.

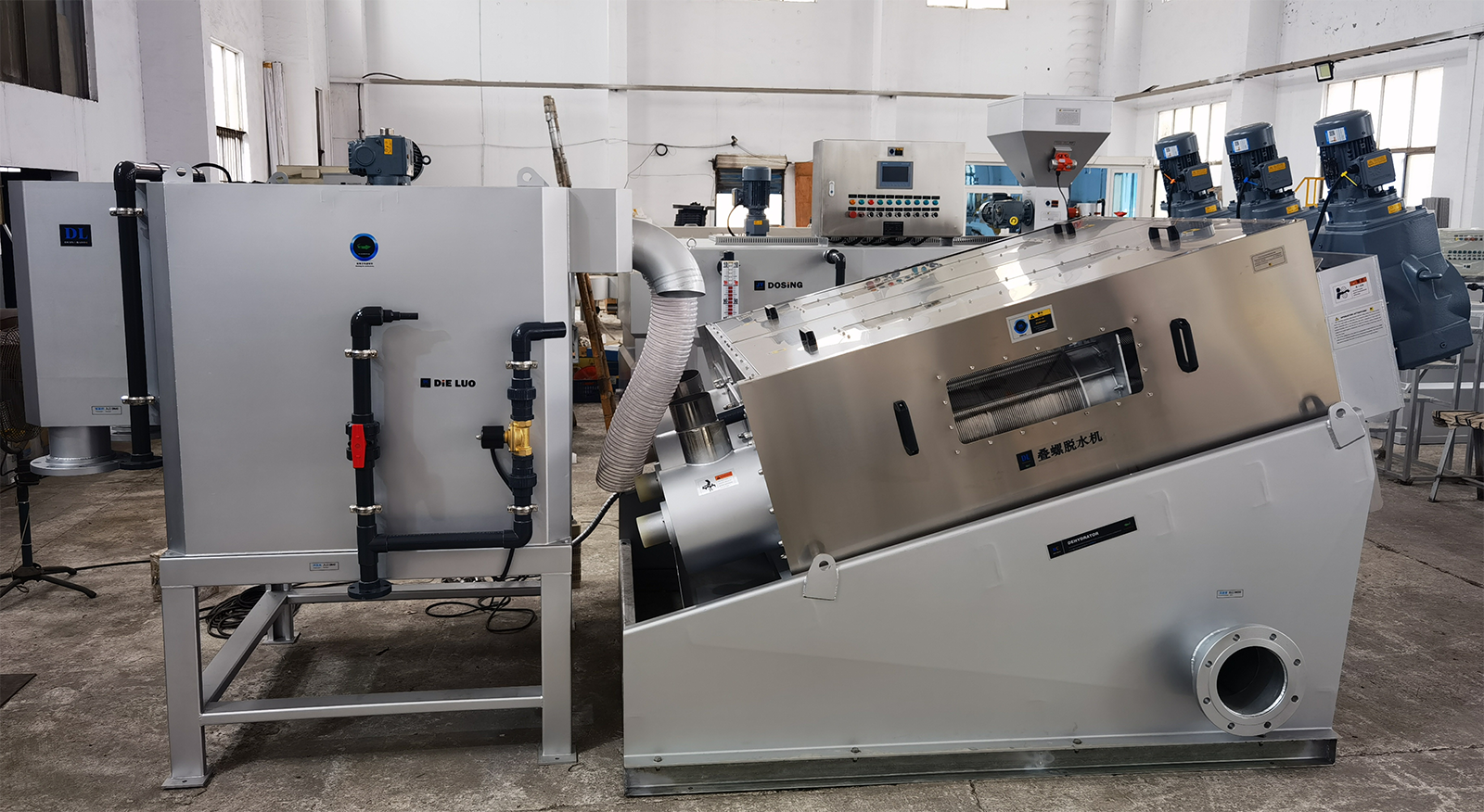

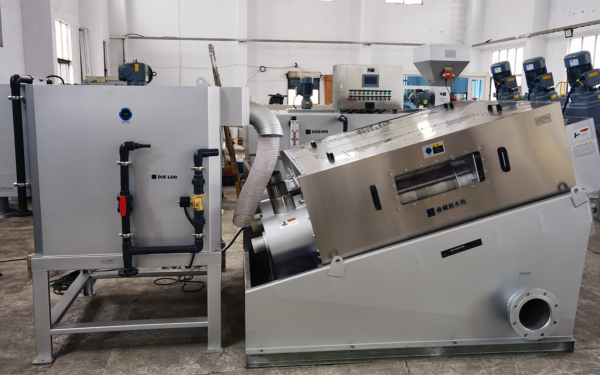

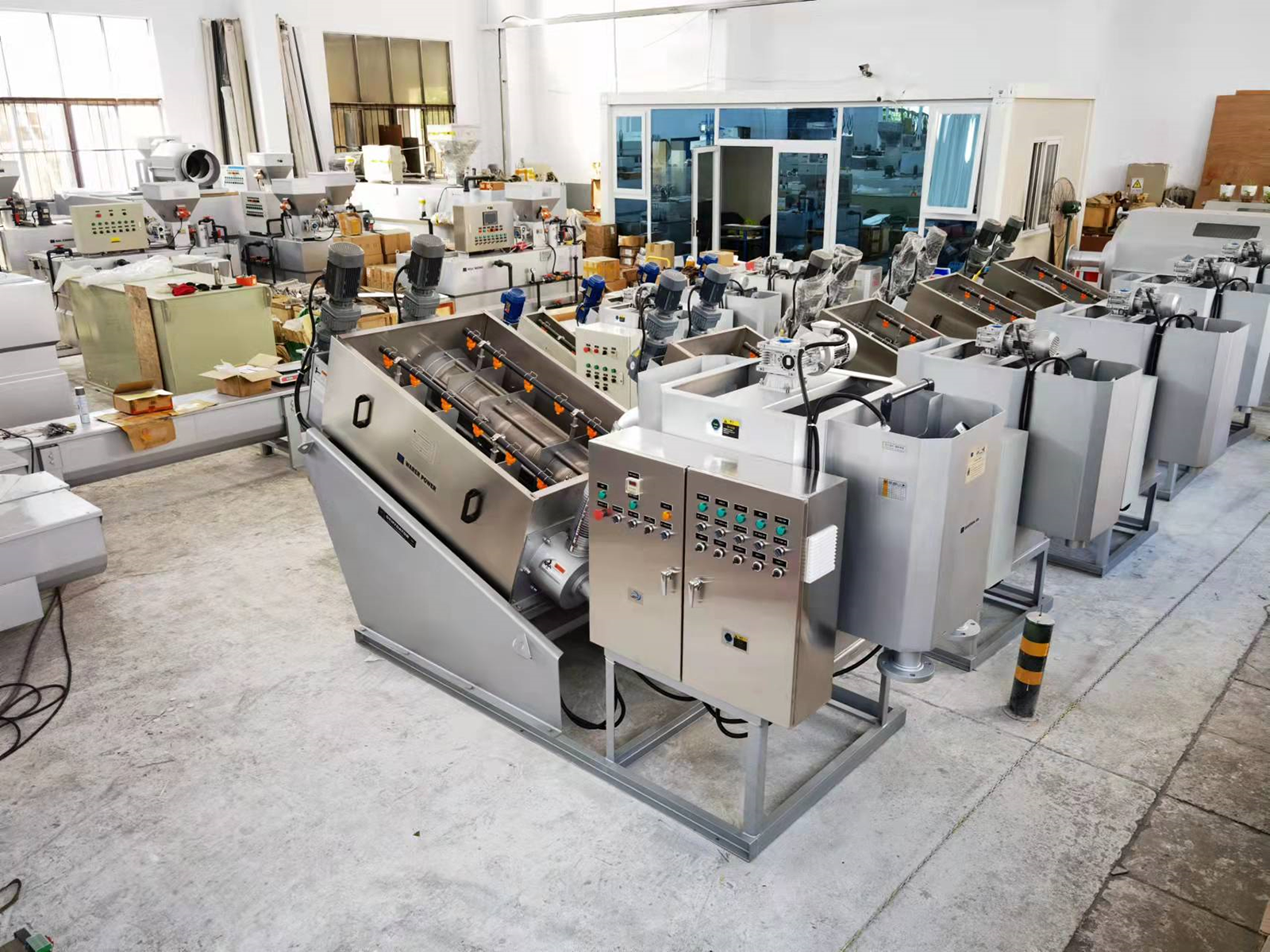

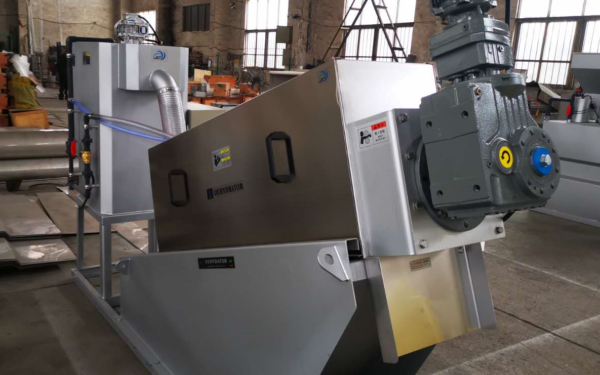

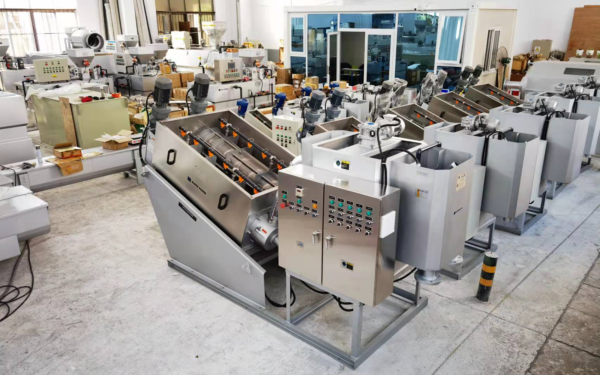

The sludge dewatering press offers a completely operational, skid mounted and self-contained system which can include:
• Screw press
• PLC control
• Sludge pumps
• Back wash system
• Polymer dosing unit
• Sludge cake conveyor
