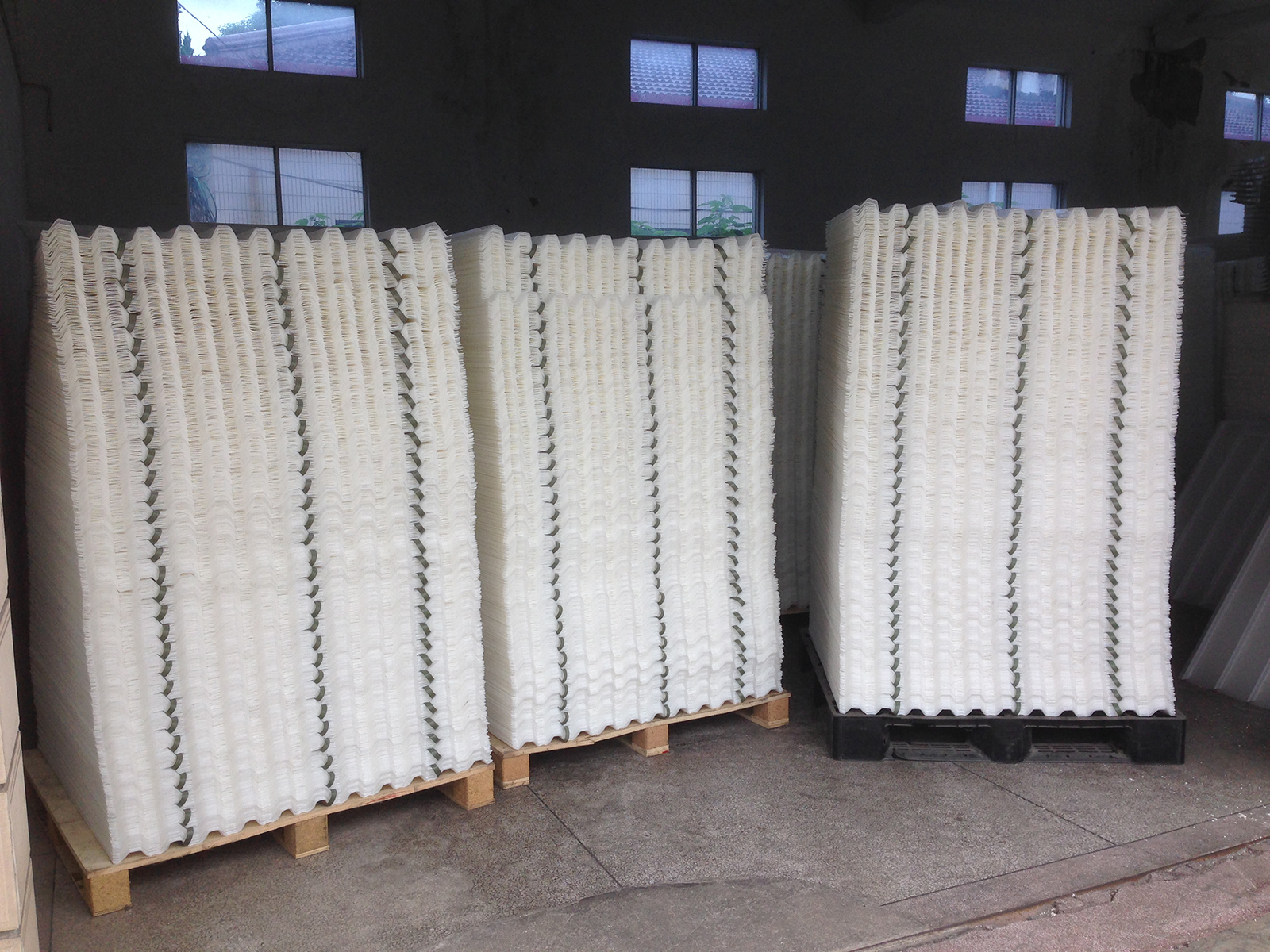

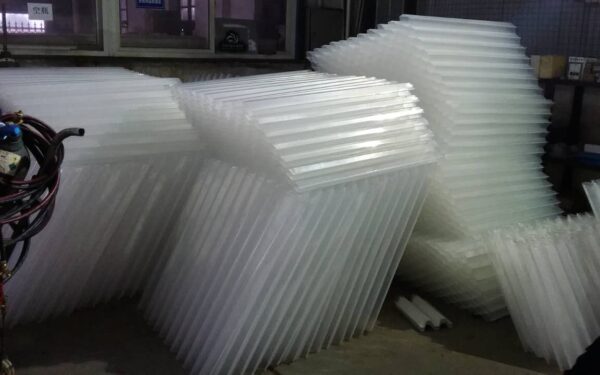

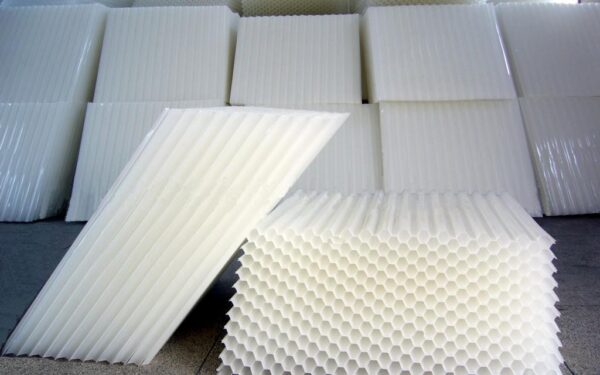

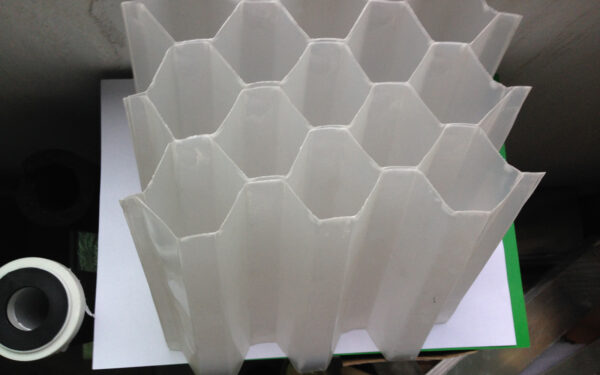

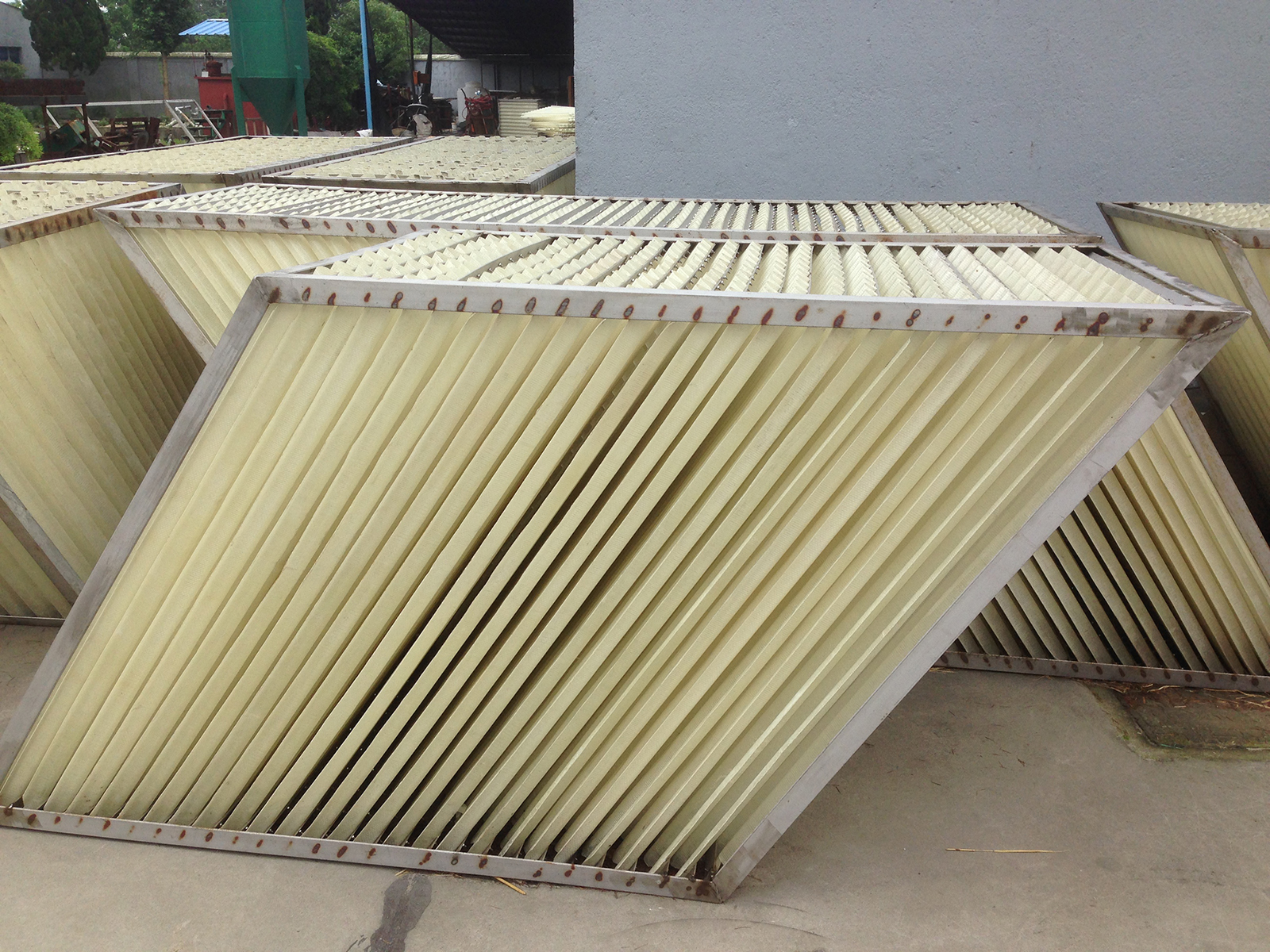

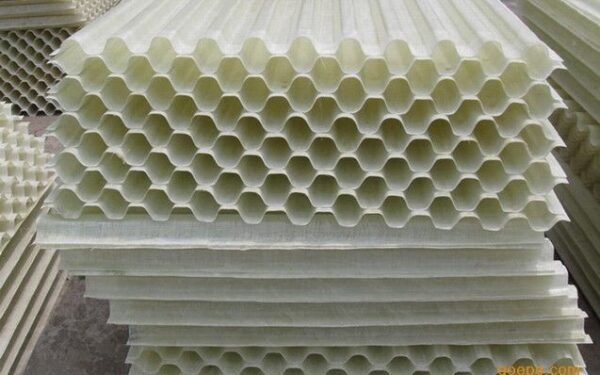

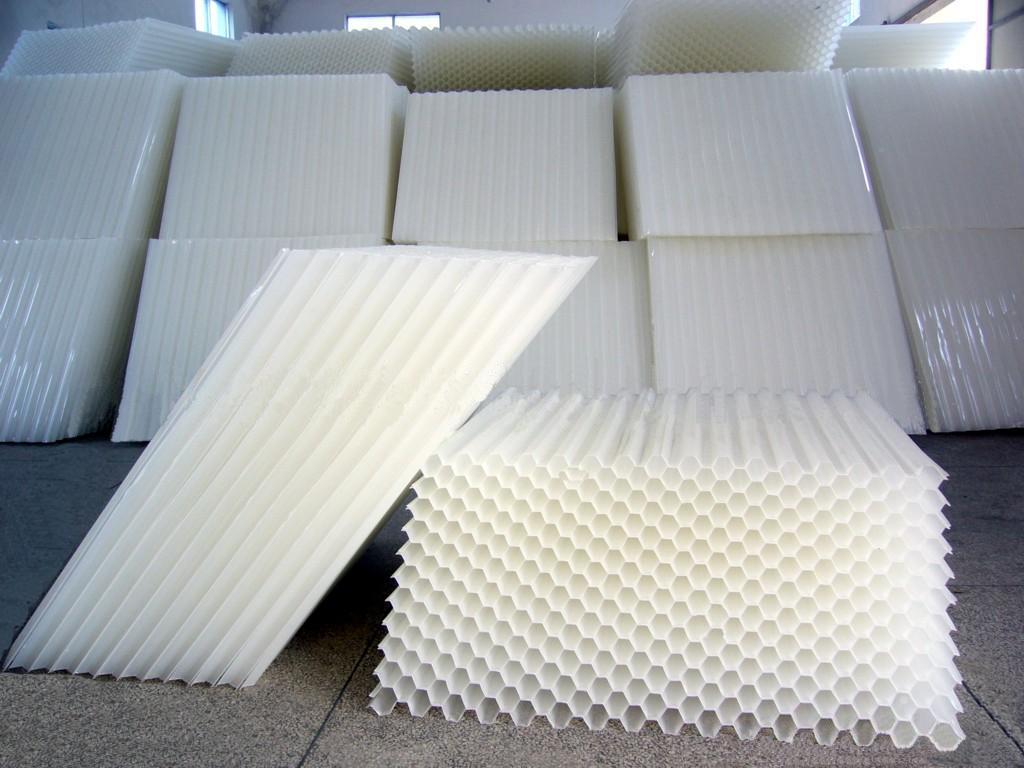

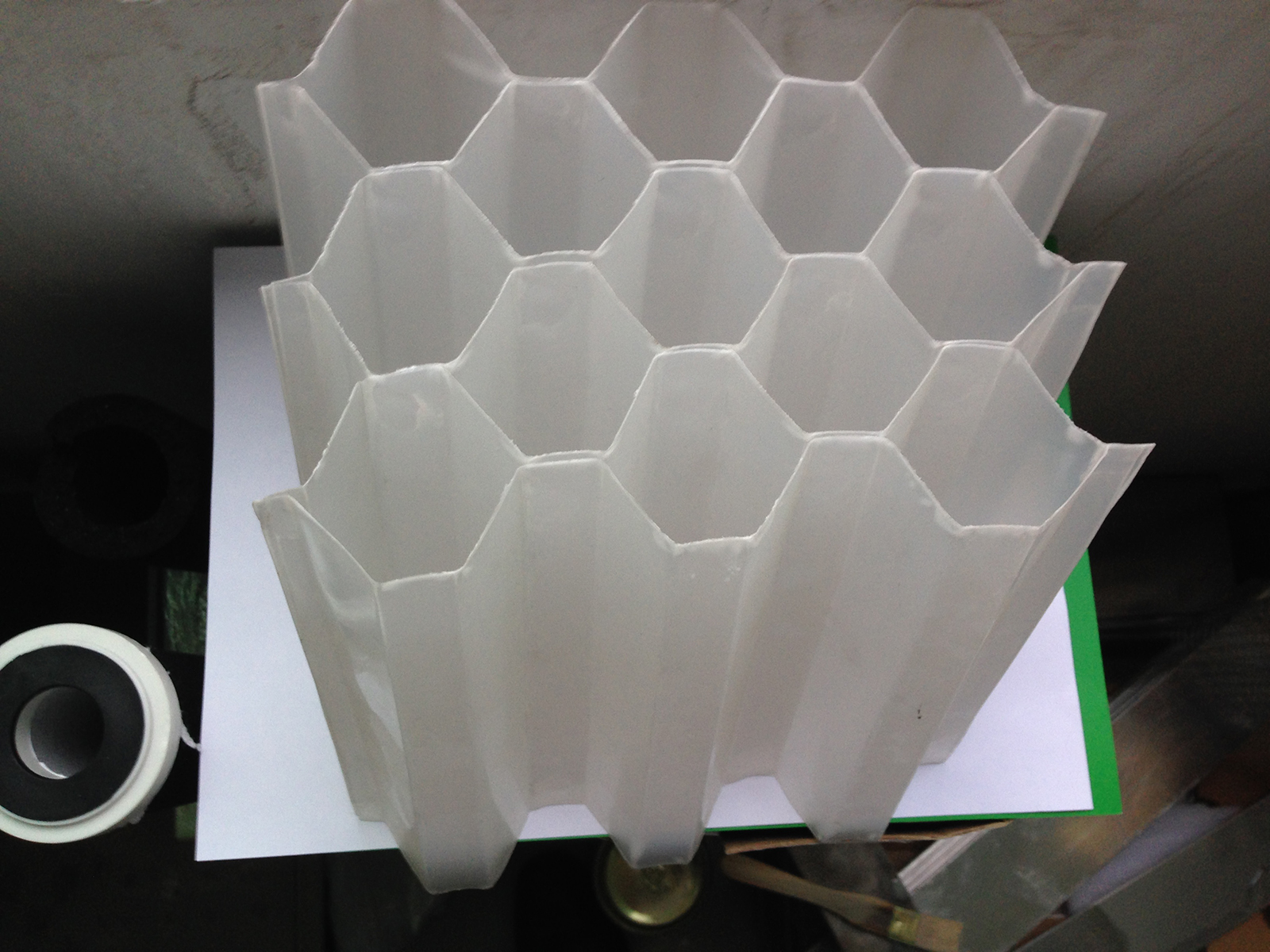

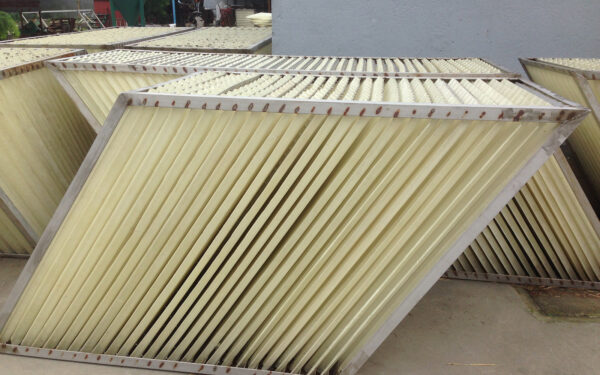

Diagonal tube:
It is used to remove deposits and sand and is the most widely used and ripe water disposal facility in water supply and sewerage works over the ten years. It is widely used with high treatment efficiency , covers small area, applicable fordesanding at the intake, removing depositsfrom water of generalindustry and domestic water, settlement of sewage. Removing oil and thickening treatment of tailings. It is applicable for both new construction and reconstruction of the current old pools with ideal use effects.
Major Characters
1. Large wet area and small hydraulic radius. 2. Good laminar conditions, and the particle fall is free from disturbance of the turbulence.
3. Whenthe diagonal tube is 1 meter long, the live load is designed to be 3-5tons /m2.h.v.
4. A tube settler is adopted with its processing capacity 3-5 times of the tranquil flow settler and 2-3 times of the accelerated clarifier and pulse clarifier.

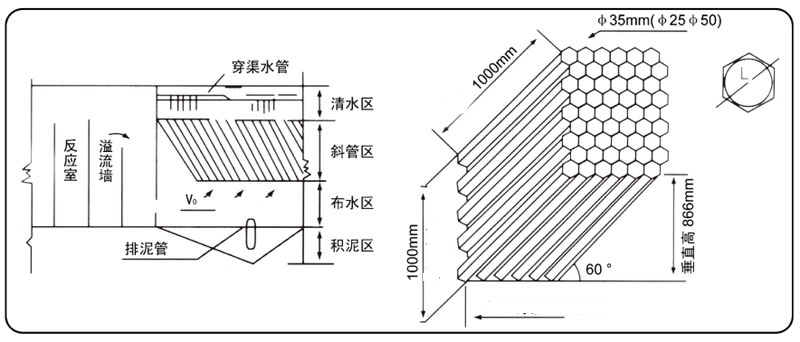

Chart
Techincal specifications
| Model | Thick mm | Qty pcs/m² | Weight/m2 (kg) |
| Ф25 | 0.45 | 44 | 43 |
| 0.50 | 44 | 48 | |
| Ф30 | 0.45 | 40 | 36 |
| 0.50 | 40 | 40 | |
| Ф35 | 0.45 | 38 | 30 |
| 0.50 | 38 | 34 | |
| Ф40 | 0.45 | 36 | 27 |
| 0.50 | 30 | 18 | |
| Ф50 | 0.55 | 30 | 20 |
| 0.6 | 30 | 22 | |
| Ф60 | 0.55 | 28 | 22 |
| 0.60 | 28 | 24 | |
| Ф80 | 0.7 | 22 | 23 |
| 0.8 | 22 | 26 |
Material: PP
Diagonal Tube
It is used to remove deposits and sand and is the most widely used and ripe water disposal facility in water supply and sewerage works over the ten years. It is widely used with high treatment efficiency , covers small area, applicable fordesanding at the intake, removing depositsfrom water of generalindustry and domestic water , settlement of sewage. Removing oil and thickening treatment of tailings. It is applicable for both new construction and reconstruction of the current old pools with ideal use effects.
